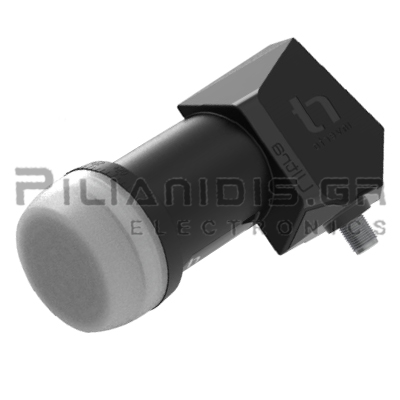

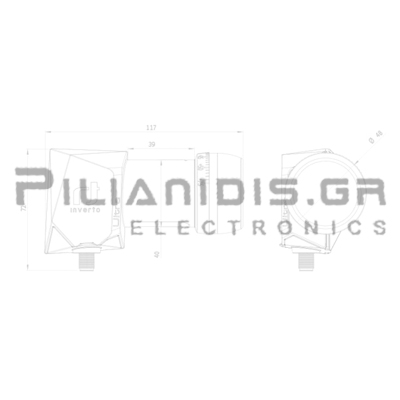

Χαρακτηριστικά:
Low band input frequency range 10.7 GHz ~ 11.7 GHz
Low band output frequency range 950 MHz ~ 1950 MHz
Low band LO frequency 9.75 GHz
High band input frequency range 11.7 GHz ~ 12.75 GHz
High band output frequency range 1100 ~ 2150 MHz
High band LO frequency 10.6 GHz
Noise figure 0.2 dB typ. (0.7 dB max.)
LO temperature drift ± 2.0 MHz max.
LO initial accuracy ± 1.0 MHz max.
LO phase noise @ 1 kHz -70 dBc/Hz
LO phase noise @ 10 kHz -80 dBc/Hz
LO phase noise @ 100 kHz -90 dBc/Hz
LO phase noise @ 1 MHz -100 dBc/Hz
Conversion gain 60 ~ 70 dB
Gain ripple (over 26 MHz bandwidth) 1 dB max. (peak-to-peak)
Gain variation (over full band) 4 dB max. (peak-to-peak)
Image rejection 50 dB min.
3th order intermodulation - ICP3 +10 dBm min
1 dB compression point (@ output) 0 dBm min.
Cross polarization isolation 22 dB min.
Control signal Ca (V) 10.0 V ~ 14.0 V
Control signal Cb (H) 16.0 V ~ 20.0 V
Control signal Cc (band switching) 22 kHz ± 4 kHz, 0.4V 0.8V pp
Output VSWR 2.0 : 1 max.
In band spurious level -65 dBm max.
Current consumption 100 mA max. (10 VDC ~ 20 VDC)
Operating temperature -30 ℃C ~ +60 ℃C
Output impedance 75 Ω (F-type)
Output connector type F-Type (female)
Weight 111.2 g
